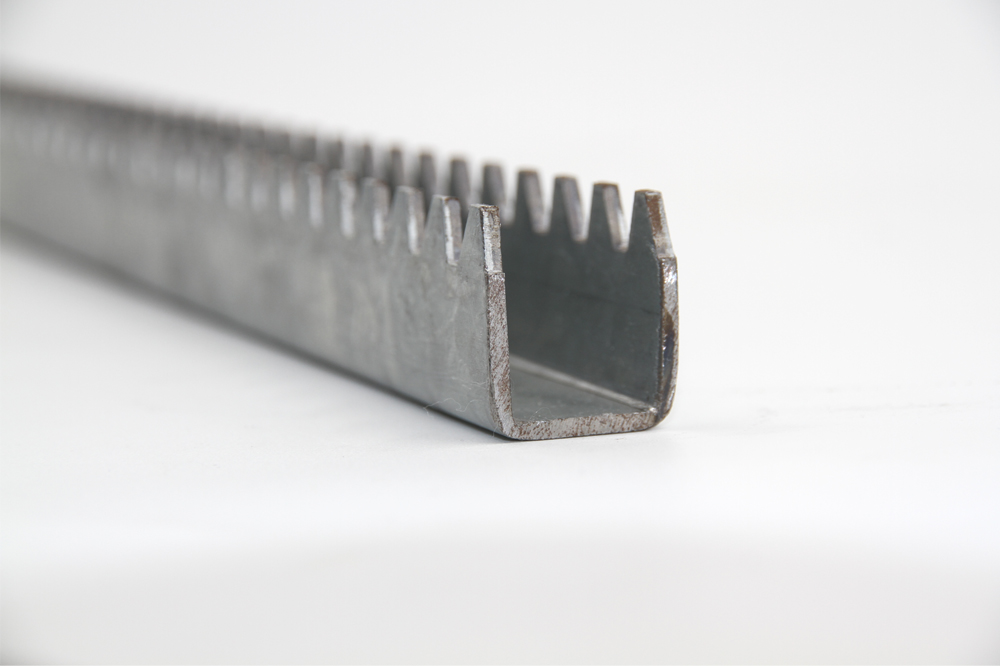

Ventilation rack
The ventilation rack is a very important part of the ventilation system, mainly play the role of driving in the greenhouse ventilation system.
Ventilation rack
Its made of high galvanized steel plate, the galvanized thickness>275g/m2;
Mainly used in roof and side continous ventilation system;
All length can be customized;

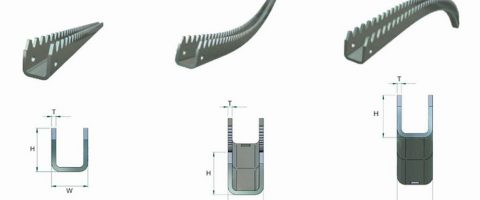

| Ventilation rack（straight） | |||
| L mm | T (mm) | H(mm) | W(mm) |
| 1050 | 2.0 2.5 3.0 | 30 | 25 |
| 1250 | 2.0 2.5 3.0 | 30 | 25 |
| 1450 | 2.0 2.5 3.0 | 30 | 25 |
| 1650 | 2.0 2.5 3.0 | 30 | 25 |
| 1950 | 2.0 2.5 3.0 | 30 | 25 |
| Ventilation rack（curved,inside teeth） | ||||
| L mm | T (mm) | H(mm) | W(mm) | R |
| 1050 | 2.5 | 30 | 25 | 1000 |
| 1250 | 2.5 | 30 | 25 | 1000 |
| 1450 | 2.5 | 30 | 25 | 1000 |
| 1650 | 2.5 | 30 | 25 | 1000 |
| 1950 | 2.5 | 30 | 25 | 1000 |
| Ventilation rack（curved,outside teeth） | ||||
| L mm | T (mm) | H(mm) | W(mm) | R |
| 1050 | 2.5 | 30 | 25 | 1000 |
| 1250 | 2.5 | 30 | 25 | 1000 |
| 1450 | 2.5 | 30 | 25 | 1000 |
| 1650 | 2.5 | 30 | 25 | 1000 |
| 1950 | 2.5 | 30 | 25 | 1000 |
